3.2.2 Wrought copper allot P-trap. Thickness of
wrought copper alloy P-traps shall be 0.032 ± 0.003 inch (0.81 ± 0.076 mm)
prior to bending. Except for thickness, wrought copper alloy P-traps shall
conform to ASME/ANSI B16.29 for material and end dimensions, and to ASME/ANSI
B16.23 for other dimensions.

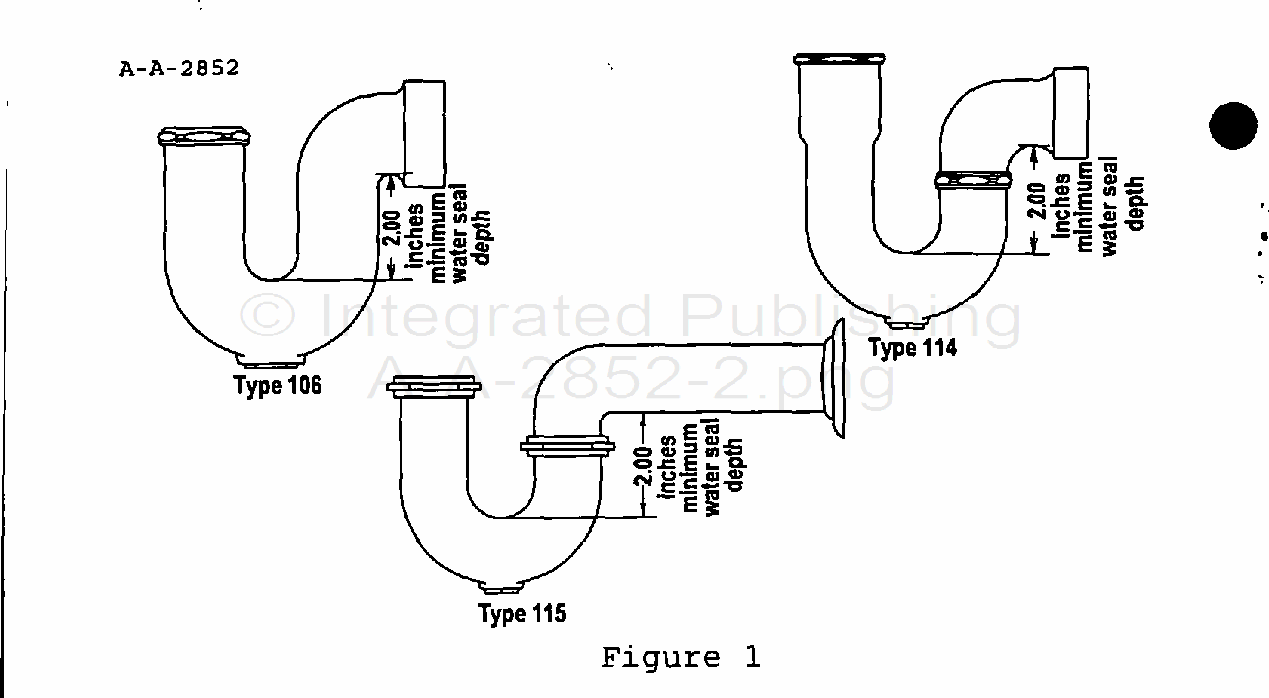

3.3 Type 106. Type 106 P-traps shall be a one-piece cast copper alloy
with slip joint (SL) inlet to female threaded outlet (F) connection. The
outside diameter of the P-trap shall be 1-1/2 inches (38.1 mm).
3.4 Type 114. Type 114 P-traps shall be a two-piece metal to metal
swivel joint, wrought metal with cast elbow, slip joint (SJ) inlet to female threaded
outlet (F) connection. The outside diameter of the P-trap shall be 1-1/2 inches
(38.1 mm). The overall length shall be 5-1/2 inches (139.7 mm).
3.5 Type 115. Type 115 P-traps shall be a two-piece metal to metal
swivel joint, wrought copper alloy with elbow extension tube and escutcheon.
The length of the extension tube shall be not less than 10-1/4 inches (260.3
mm) measured from the centerline of the trap inlet to the tube outlet. The trap
inlet connection shall be slip joint (SJ). The tube connection to waste pipe
shall be a straight tube for use with an adapter. The outside diameter of the
tube and trap shall be 1-1/4 inches (31.7 mm).
3.6 Inlet connection (SJ) (washer and nut). The inlet connection shall
have an elastomeric washer and a copper alloy or die-cast zinc nut with wrench
flats and compatible with the size of the P-trap.
